Roll Compactor 200/50

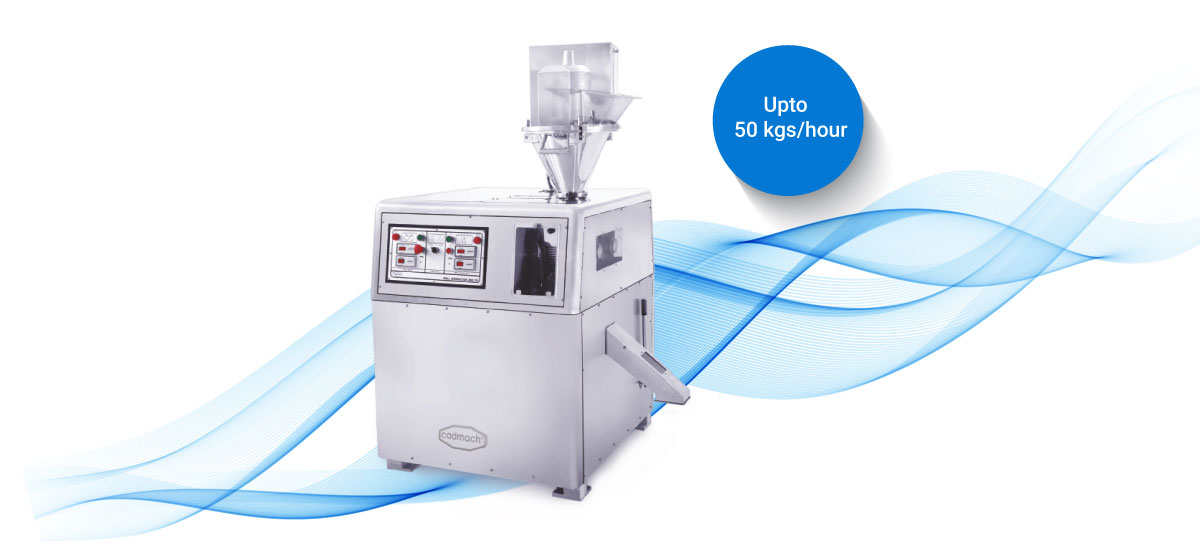

CADMACH Roll Compactor 200/50 is compact and efficient vertical feeding based machine with the rated output of max. 50 kgs/hour.

Important Specifications:
  • cGMP Model
  • Compacting Roll surface - Corrugated / Knurled / Briquetted / Smooth Options available
  • ACVFD for Feed Screw Motor
  • PLC control with HMI Touch Screen & Printing Facility
  • ACVFD for main motor
  • Water-Cooling System
  • Air Purging System

TECHNICAL SPECIFICATION
MACHINE TYPECMRC 200/50
Compacting roll size (mm)200 Dia. x 50 W.
Roll surface (Selection depends upon material characteristics)Standard
(a) Corrugated
Additional Options
(a) Smooth
(b) Knurled
(c) Briquetted
Max Output (kg / hour) *50
Roll Speed (rpm) (By step pulley)6 to 23
Feed screw speed (rpm) (Through ACVFD)10 to 60
Ele. motor for roll drive (kW / hp)3.7 / 5.0
Power consumption (kW / hp)4.8 / 6.5
Power supply220 / 380 / 415 / 480 V +10%, 3 Ph., 50 / 60 Hz
Overall dimensions (cm)107 W x 118 D x 195 H
Net weight (kg)1500
  • *Depending upon material characteristics and roll surface.
  • *Because of technical progress, we reserve rights of alteration.
